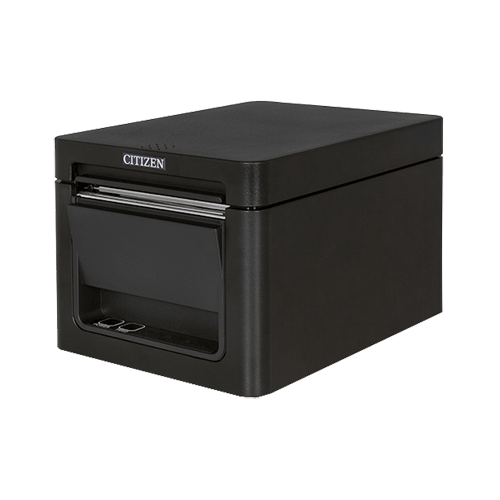

CITIZEN CTD150 3" Thermal POS Printer USB RS232 interface Blk

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CTD150URBL
  • CTD150XXABX
  • CITIZEN
  • CTD150
  • Login to view pricing and availability

CT-D150 3" POS Thermal Printer with USB & RS-232 Serial Interface, Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Low cost Thermal Printing
  • 250mm/sec. printing speed
  • Drop-in Paper Loading
  • Built-in USB & Ethernet or USB & RS232 Serial Interface
  • NV Memory for Bit map Data Storage
  • Barcode Printing including GS1 DataBar and 2D Barcodes
  • LLP (Long Life Print) function to be able to extend the printer life
  • Paper save function: Top Margin /Line Spacing / Font Compression
  • Internal Energy Star® Power Supply
  • Low power consumption: Power Save Mode / USB Power Save Mode
  • Easy customization with software utility
  • Printer can be positioned Horizontally or Vertically
  • Available in Black & White (white special order only MOQ applies)
NameSizeDownload
Brochure583kb ctd150_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
TMT20TM-T20 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm/576 Dots
58mm Paper: 48mm/384 Dots
Dot Pitch
8 x 8 dots/mm (203 x 203 dpi)
Printing Speed (Max.)
250 mm/Sec
Number of Columns
80 mm Paper: Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
58 mm Paper: Font A - 35/32 columns, Font B - 46/42 columns, Font C - 52/48 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.0 mm (8 x 16 Dots)
Character Table/Code Pages
Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3, Kanji (JIS first, second, third, and fourth level), Kana, extended characters, JIS X0213, GB18030, BIG5, KS Hangul, EUC Hangul
Bar-code Type
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, GS1 DataBar, PDF417, QR Code
Line Spacing
4.25mm (1/6 inch), adjustable by a user by command
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
79.5 ± 0.5mm or 57.5 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
53 to 85µm (core tube diameter: inner 12 mm/outer 18mm)
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light & Error Light
Buzzer
Emulation
ESC/POS
Print Buffer
4KBytes/45 bytes
NV Memory
384 Kbytes
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Built in:
USB 2.0 & Ethernet
or
USB 2.0 & RS232
Driver available
Windows 2000/NT/XP/VISTA/7 32 bit & 64Bit/OPOS/JavaPOS/ POS for .net/CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Input: AC100 ~240V 50/60Hz Energy Star® approved
Rated output: DC 24 V, 2.1 A
Power Consumption
Approximately 2.0 A (average), approximately 0.1 A (standby)
External Dimensions (WxDxH)
125 x 165 x 108 mm
Weight
Approx. 1.3 Kg
Operating Environment
5-45°C, 10-90% RH
Storage Environment
-20-60°C, 10-90% RH
Reliability
Head: 300,000,000 pulses or 150 Km
Auto Cutter: 2,000,000 cuts (Using 3 inch Paper)
EMC/Safety Standards
UL, C-UL, FCC Class A, CE Marking, C-Tick
