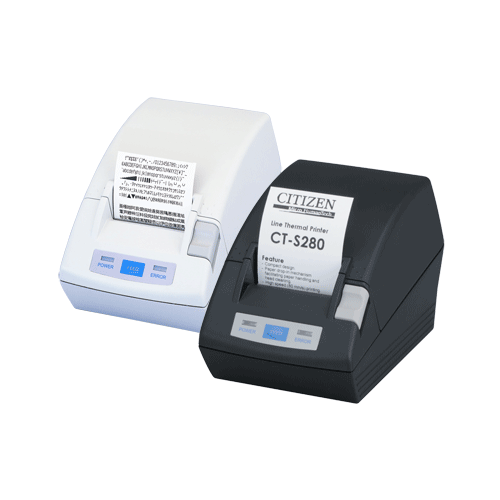

CITIZEN CT-S280 Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Citizen CT-S280 low-cost thermal mini printer fits perfectly in a wide variety of logging applications. It combines high-speed, two-colour printing with a compact footprint and drop in paper loading for a reliable, versatile printer.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Speed (80mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Two Colour Printing (with Special Paper)
  • Barcode Printing
  • Compatibility (ESC/POS)
  • Easy to use configuration software
  • Low cost Thermal Printing
  • User-changeable interface
  • Available in Ivory & Black
  • Can also be hung upright
NameSizeDownload
Datasheet101kb cts280_catalog_datasheet.pdf
User Manual1,059kb CT-S280ume.pdf
English model drivers74,762kb CIT_360_all_driver_files.zip
Windows Driver5,051kb CIT_157aE.EXE
Command Reference Guide3,425kb CTS_PMU_CTP_CommandReference.pdf
MacOSX Driver418kb CIT_ctzpos-cups-1.2.0-0.dmg

Products available to purchase

 SKUVendorName
CTS280PBL CITIZENCT-S280P 2" Thermal PrinParater Parallel interface Black
CTS280RBL CITIZENCT-S280R 2" Thermal Printer RS232 interface Black
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
48mm / 384 dots
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 80mm/s.
Number of Columns
32 columns - Font A: 12 x 24 dots horizontal and vertical
42 columns - Font B: 9 x 24 dots
48 columns - Font C: 8 x 16 dots
Character Size
Font A:1.50 ×3.00 mm
Font B:1.13 × 3.00 mm
Font C:1.00 x 2.00 mm
Character Table/Code Pages
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Bar-code Type
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR , CODE 93.
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
58+0/-1 mm,
Paper Roll Diameter
Max Ø 83.0mm.
Paper Thickness
0.065 to 0.075mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
NA
Indicators/Controls
Power LED. Feed Button,Error LED, Power switch
Emulation
Citizen
Print Buffer
4K bytes / 45 bytes
NV Memory
256 Kb (capable of storing user-defined characters and logos)
Sensors
Paper end Sensor
Drawer Port
NA
External Device Port
N/A
Interfaces
Serial (RS-232C compliant),Parallel. USB,
Driver available
WIN 7, CUPS
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC8.5V, 2.5 A
Power Consumption
Approx. 18 W (normal printing), 2W (standby)
External Dimensions (WxDxH)
106W x 170D x 116.5H mm
Weight
430g approx. AC adaptor 240g approx.
Operating Environment
5 to 40 °C, 10 to 85 % RH (no condensation)
Storage Environment
-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability
Print head life: 50km, 100 million pulses
EMC/Safety Standards
UL, C-UL, FCC class A, TÜV, GS, CE marking, C-tick
