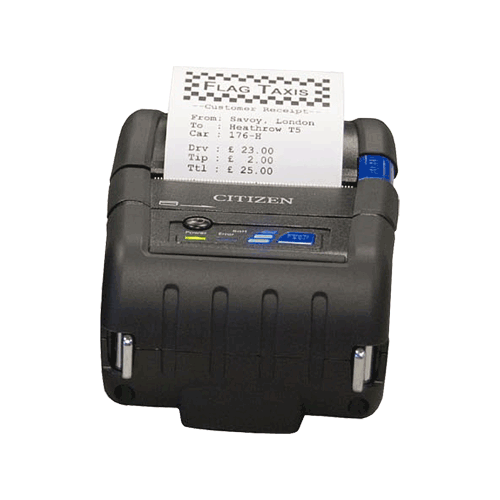

CITIZEN CMP-20 Portable 2 inch Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Citizen's CMP-20 mobile printers put the power of professional receipt printing in the palm of your hand. The CMP-20 prints on 2-inch wide receipts. For protection, a strong rubber moulding is wrapped about the high-impact case to give both durability and reliability.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 2 inch Portable Thermal Printer
  • Paper Drop in Style
  • USB & RS232 interface standard
  • Factory option of Bluetooth® and Wireless LAN interfaces.
  • BT Compatible with iPhone 3GS, 4, 4S, 5, 5S, 5C, iPad (3rd - 4th Gen), iPad 2, iPod, iPod mini, iPod touch (3rd to 5th Gen)
  • Li-ion rechargeable Battery
  • Battery monitoring
  • Belt Clip
  • Internal Charging Circuit
  • Belt Clip & Strap holder
  • Firmware & Font Data loaded through interface
  • Auto power off function
  • Factory option: 3 track Magnetic stripe car reader
NameSizeDownload
Brochure164kb cmp20-30_brochure.pdf
User Manual4,571kb cmp20_um.pdf
Windows Utility Software146kb CIT_CITIZEN_CMP-2030_Utility-1.67.zip
Windows Driver15,258kb CIT_CMP20WinDriver130E.zip

Products available to purchase

 SKUVendorName
CMP20BT CITIZENCMP-20 Portable Bluetooth Printer
CMP20MBT CITIZENCMP-20 Portable BT Printer with MSR
CMP20WF CITIZENCMP-20 Portable Wifi 57mm Printer
AD-CMP20AUADAPT CITIZENAU Plug for Adapter CMP series (old)
CMP20CHGCRADLE CITIZENBattery Charge Cradle for the CMP20 Battery
CMP20VCHG CITIZENCigar Jack Charger for the CMP20 30
AD-CMP20 CITIZENPower Supply recharger for the CMP20 30
CAB-CMP20RS CITIZENSerial Cable for the CMP20 30
CMP20BATT CITIZENSpare Rechargeable Battery for CMP20
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
48 mm Paper
Dot Pitch
203 dpi
Printing Speed (Max.)
Max. 80mm/sec
Number of Columns
Font A - 32 columns
Font B - 42 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Character Table/Code Pages
Alphanumeric characters, extension character, 18 codepages, 14 international characters
Bar-code Type
UPC/A, JAN (EAN) 13 & 8, ITF, CODE 39, CODABAR, CODE 93, CODE 128, PDF417 (2D)
Line Spacing
4.23mm changable using commands
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
58 mm Paper
Paper Roll Diameter
Max Ø 48 mm
Paper Thickness
65um
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge & Error Indicator
Paper Feed & Power Button
Emulation
ESC/POS
Memory
256KB - capable of storing user defined characters and logos
Sensors
Paper End Sensor, cover open sensor
Interfaces
Standard: Serial (RS 232C) & USB
Optional (Model dependant):
Bluetooth class 2
WLAN 802.11 b/g
Driver available
Windows 2000/XP/Vista, Windows Mobile, CUPS, Windows SDK, Windows SDK CE5/CE6,Androide SDK, iOS SDK
Software Utilities
iOS SDK, Android SDk
Battery
Rechargeable 7.4V Li-ion 1800mAh
On Full Charge: Continuous printing for up to 90 minutes, 24 Hours on Standby
Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 1200mA
MSR
Factory Option
2 Track MSR
IC Card Reader
External Dimensions (WxDxH)
96 x 136 x 58 mm
Weight
442 g
Operating Environment
5 to 40 °C
95% RH None condensing
Storage Environment
-10 to 50°C
95% RH None condensing
Environmental Sealing
IP42
Mechanical Shock
multiple drops of 1.2m (6 faces)
Reliability
Printhead 50 km
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, CCC
