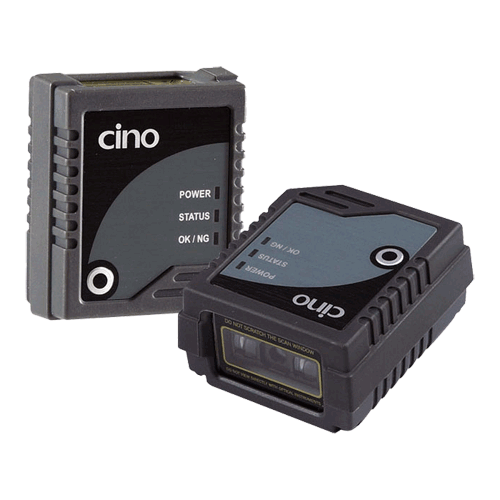

CINO FM-480 Fixed Mount Linear Imaging Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

A Durable, High Performance Fixed Mount Linear Imaging Scanner for General Purpose and Industrial Applications. Choice of front-view or side-view model for diverse application demands.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Durable overmold construction and IP54 design
  • Ultra-compact and easy mounting design for flexible integration
  • Choice of front-view or side-view model for diverse application demands
  • Rich indication and user interface for intuitive operations
  • Support both external trigger and serial trigger
  • Additional OK and NG output signals for precise reading control
  • Useful test mode for quick and optimal installation
  • Outstanding reading capability on 3 mil barcode with more than 3” depth of field
  • Up to 34” reading distance on 100% UPC/EAN symbols
  • High speed scanning rate up to 500 scans per second for snappy barcode capture
  • Unsurpassed readability on low contrast, soiled, poorly-printed or damaged barcodes
  • Supports GS1 DataBar, PDF, MicroPDF and composite code
NameSizeDownload
Brochure296kb fm480_brochure.pdf
Programming Manual1,095kb Cino_fixed_mount_programming_manual.pdf
FuzzyScan PowerTool Programming Utility10,137kb Cino_PowerTool_2.05.18.rar
USB VCOM Driver 64 bit1,987kb Cino_USB_VCOM_64_3.0.4.0.rar

Products available to purchase

 SKUVendorName
FM480F-RU CINOFM480 Front view Universal Kit USB & RS232
FM480F-R CINOFM-480 Front-View RS232 only
FM480F-U CINOFM-480 Front-View USB only
FM480S-RU CINOFM480 Side view Universal Kit USB & RS232

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
20% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0~100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command, Serial Command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
3 LEDs for power, Status, OK/NG indications
Test button
Programmable beeper
Operating Modes
Trigger, Alternative, Level, Force, Presentation.
Communication Type
Corded
Interfaces
RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Supply Voltage
5VDC ±10%
Power Consumption
Operating : Typical 165 mA @5VDC
Standby : Typical 70 mA @5VDC
Drop Specification
N/A
Environmental Sealing
IP54
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
EMC: CE, FCC, BSMI, VCCI, KC
Safety: LED Eye Safety IEC62471, Exempt Group
Environmental: Compliant with RoHS directive
External Dimensions (WxDxH)
40.6 x 23.1 x 47.6 mm
Weight
120g (RS232 and Universal version)
95g (USB version)
  • select
