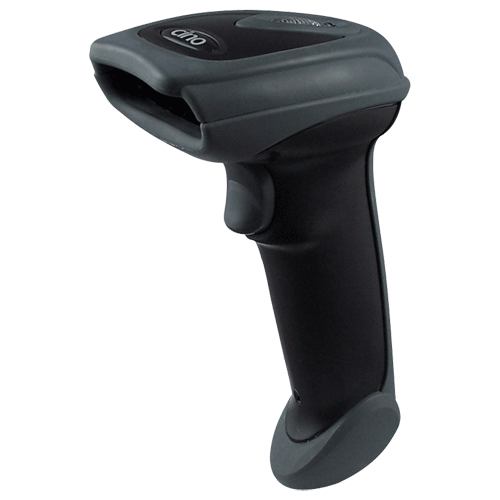

CINO F-780 Series Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The all new FuzzyScan FBC-780 series Long Range Linear Imager has set up a new standard as the best cost-performance solution for aim and shoot data capture applications. Equiped with the innovative DynaTrack (patent pending) system , the F780 automatically capture the best possible bar code image through intensive controls amongst the illumination, image capture and the image processing systems.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Solid State Linear Imager Technology, No moving parts!
  • Rugged and compact design
  • Supports GS1 DataBar
  • Bright Sharp Aiming Line
  • Fast Decoding Rate
  • Optical and Audible Read Confirmation
  • Exceptional Read Performance
  • Manual, Presentation Mode or Auto Trigger
  • Universal interface
  • Reads Degraded and damaged bar-codes
  • Powerful, Flexible Architecture
  • Embedded outstanding DataWizard to meet most of the data editing requirements
  • This model replaces the F-760 Series
NameSizeDownload
Brochure269kb f780_brochure.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf
Cino FuzzyScan PowerTool Configuration Utility3,069kb CINO_PowerTool2.00.08.rar

Products available to purchase

 SKUVendorName
FBC780B-R CINOF780 Linear Imager Scanner with RS232 Cable
FBC780B-U CINOF780 Linear Imager Scanner with USB Cable
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners
CAB-FB7S-RPE CINOCable DB9F for FBC4360 760.
CAB-FB7S-K CINOCable PS2 for FBC4360 760
CAB-FB7S-UK CINOCable USB for FBC4360 760
FBC760STAND CINOHandsfree Stand for FBC760 Wh

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1250gVogager 1250g Linear Imager Scanner
1300gHyperion 1300g Linear Imager
3800GIT-3800G Linear Imager
3800LRIT-3800LR Linear Imager
LS2208LS-2208 Handheld Laser Scanner
MS9590MS-9590 VoyagerCG® Handheld Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
High Performance Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
20% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
More then 60 cm on 100% UPC/EAN symbols
More then 86 cm on 20 mil code 39
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0~100000 Lux
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
3 LED's for Power, good read, and Status Indicators
Programmable Beeper
Optional Vibrator (Special Order with MOQ)
Operating Modes
Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation.
Communication Type
Corded
Interfaces
PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation
Supply Voltage
5VDC ±10%
Power Consumption
Operating : Typical 180 mA @5VDC
Standby : Typical 80 mA @5VDC
Drop Specification
Withstands 50 drops at 1.8 m to concrete
Withstands 10 drops at 2 m to concrete
Environmental Sealing
IP41
ESD Protection
Functional after 15kV discharge
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
70.5 x 97.8 x 156.2mm
Weight
157g (excluding the cable)
