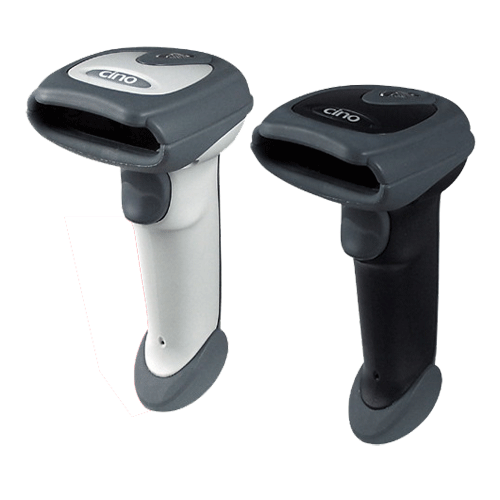

CINO F-760 Series Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The all new FuzzyScan FBC-760 series Long Range Linear Imager has set up a new standard as the best cost-performance solution for aim and shoot data capture applications. Equiped with the innovative DynaTrack (patent pending) system , the F760 automatically capture the best possible bar code image through intensive controls amongst the illumination, image capture and the image processing systems.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Solid State Linear Imager Technology, No moving parts!
  • Rugged and compact design
  • Bright Sharp Aiming Line
  • Fast Decoding Rate
  • Optical and Audible Read Confirmation
  • Exceptional Read Performance
  • Manual, Presentation Mode or Auto Trigger
  • Universal interface
  • Reads Degraded and damaged bar-codes
  • Powerful, Flexible Architecture
  • Embedded outstanding DataWizard to meet most of the data editing requirements
NameSizeDownload
Datasheet1,250kb fbc760_datasheet.pdf
Programming Manual1,205kb FuzzyScan Programming Manual_Rev D6_B50206.pdf
Cino FuzzyScan PowerTool Configuration Utility3,069kb CINO_PowerTool2.00.08.rar

Products available to purchase

 SKUVendorName
FBC760-UR CINOF760 \w USB R emulation
FBC760 CINOF760 LGrey No cable
FBC760-R CINOF760 LGrey w RS232 cable
FBC760-UK CINOF760 LGrey w USB cable
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners
CAB-FB6DB9PE CINOCable DB9F for FBC6860 MBC6890
CAB-FB6USBR CINOCable USB for FBC6860 MBC6890
FBC760STAND CINOHandsfree Stand for FBC760 Wh
FBCUNISTAND-B CINOUniversal AutoSense Handsfree Stand for F780 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Linear Imaging Engine
Light Source
630 nm visible red LED
Scan Pattern
Single Line
Scan Rate
Dynamic scanning rate up to 500 scans/sec
Contrast Ratio
20% minimum reflective difference
Resolution
Minimum 4 mil (Code 39, PCS 0.9)
Depth of field
More then 30 cm on 100% UPC/EAN symbols
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 55 deg.
Ambient Light Immunity
N/A
Symbologies supported
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.
Programming Method
Bar code command
Windows Utility - Fuzzyscan Powertool
Condensed Data Wizard via bar code command
Full featured Data Wizard via Fuzzyscan Powertool
Indicators/Controls
3 LED's for Power, good read, and Status Indicators
Programmable Beeper
Operating Modes
Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation.
Communication Type
Corded
Interfaces
PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port
Supply Voltage
5VDC ±10%
Power Consumption
N/A
Drop Specification
Withstands Multiple drops at 1.6 m to concrete
Environmental Sealing
IP41
ESD Protection
N/A
Operating Environment
-10 to 50 °C
RH 5% ~ 95% non condensing
Storage Environment
-40 ~ 70 °C
RH 5% ~ 95% non condensing
EMC/Safety Standards
FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)
70.5 x 97.8 x 156.2mm
Weight
157g (excluding the cable)
