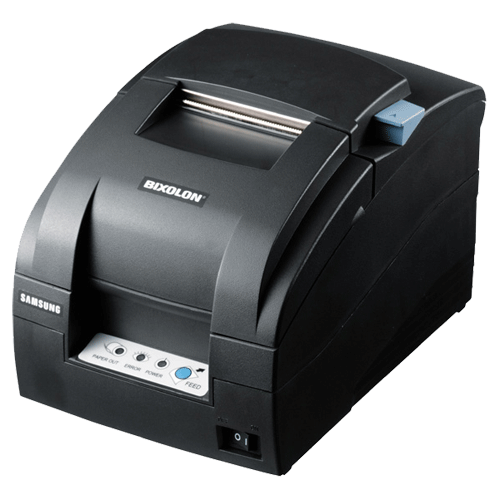

BIXOLON SRP275IIIC USB RS232 Ethernet interface Dark Grey

(Product may vary from image. Rely only on description for purchasing decisions.)
  • SRP275IIICUREG
  • SRP-275IIICOESG
  • BIXOLON
  • SRP275III
  • Login to view pricing and availability

SRP275IIIC USB RS232 Ethernet interface Dark Grey

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High Speed Dot Matrix Printing
  • Build in power supply
  • Fast print speed 5.1LPS
  • Built in buzzer alarm
  • Standard Interface: USB, RS232 & Ethernet
  • Special Order: USB & Parallel version
  • ESC/POS compatible
  • Easy to use:
  • - Drop in Paper loading
  • - Eliminates Paper Jams
  • Easy update logos and firmware using Storemaker
  • Full or Partial Cut on 275IIIC version
  • SRP275IIIA - Tear Bar Version
  • Available in Dark Grey
NameSizeDownload
Brochure147kb srp275III_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
9 Pin Serial Dot Matrix
Bi-directional Printing
Printing Width
Up to 63.5 mm
Dot Pitch
80 dpi horizontal
144 dpi vertical
Printing Speed (Max.)
40 Column Printer Approx. 5.1 lines/sec
Number of Columns
Font A: 35 Column
Font B: 40 Column
KOR: 20 Column
CHN: 22 Column
Character Size
Font A: 9 x 9
Font B: 7 x 9
KOR: 17 x 9
CHN: 16 x 16
Character Table/Code Pages
Alphanumeric: 95
Extended Graphics 128 x 27 Page
International: 48
Bar-code Type
N/A
Line Spacing
N/A
Paper feed method
Friction
Paper Type
Plain Bond Paper
or 2 ply Paper
Paper Width
76 mm +/-0.5 mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.06 ~ 0.085 mm
Paper Supply Method
Easy Drop in Paper loading
Auto Cutter
SRP275IIIC: Quilotine cutter
Indicators/Controls
Power LED Green
Paper LED Red
Error LED Red
Emulation
BXL/POS
Print Buffer
64K bytes
NV Memory
256 KBytes (Mono)
Sensors
Paper end, Paper near end Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Standard: Serial (RS-232C compliant), USB V2.0 & Ethernet (DHCP Enabled),
or (Special Order) USB V2.0 & Parallel (IEEE1284 compliant)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux, Mac CUPS Driver
Virtual COM USB/Ethernet Driver
Software Utilities
Utility Program
Power Supply
Internal AC Adapter
Rated input: 100-240 AV, 50/60 Hz
Power Consumption
Energy Star Certified
External Dimensions (WxDxH)
160 × 239 × 157 mm
Weight
SRP275IIIC: 2.5 Kg
SRP275IIIA: 2.4 Kg
Operating Environment
0 to 40 °C, 10 to 80 % RH (no condensation)
Storage Environment
10 to 90 °C, 10 to 90 % RH (no condensation)
Reliability
18 million Characters
Auto Cutter: 1.8 Million Cuts
EMC/Safety Standards
TÜV-GS, CE marking, C-tick
