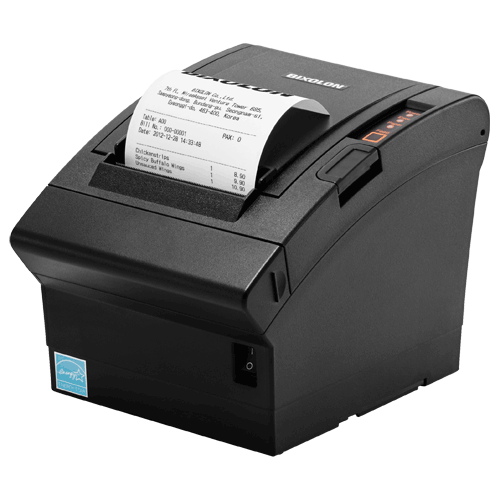

BIXOLON SRP-380 Thermal POS Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON SRP-380 direct thermal POS printer sets new standards in printer reliability and printer life expectancy. A compact, low maintenance, intelligent 3 inch thermal printer with an impressive industry leading 5 year warranty. Providing fast printing speeds up to 350mm per second, 17% faster than other comparable models in the market. High reliability of 70 million lines (MCBF) and an auto cutter guaranteed up to 3 million cuts. The SRP-380 has USB V2.0 as standard with optional connectivity that includes Serial, Ethernet, Powered USB, Bluetooth and WLAN* with additional MFi certification.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Fast printing speed of up to 350mm per second
  • Long Term Limited warranty
  • High speed USB 2.0 Interface standard onboard ( in Australia standard with Ethernet)
  • Optional RS232, Wifi and Bluetooth interfaces available
  • Compatible with smart devices including iOS (MFi optional), Android & Windows RT 8.1
  • Long lasting Auto-cutter up to 3 million cuts with easy paper-jam removal
  • Customer oriented software tools provided with Statistic data
  • 2D barcode printing support (PDF417, Datamatrix & QR code)
  • Available in Dark Grey & White (special Order)
  • Only Auto cutter version available in Australia
NameSizeDownload
Brochure131kb SRP380_brochure.pdf

Products available to purchase

 SKUVendorName
SRP380UEG BIXOLONSRP-380 with USB & Ethernet Interface
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
up to 350 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Korean: 21 columns
Chinese: 21 columns
Japan: 21 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24
Japanese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 35 page
International Character: 32
Unicode: UTF-8, UTF-16, UTF-32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code39, Code128, CODABAR, Code93,
GS1-128, GS1 DataBar Stacked/Omnidirectional/Truncated/Limited/Expanded, PDF417, QR Code & DataMatrix
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Quilotine
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
BXL/POS
Print Buffer
4 KBytes
NV Memory
768 KBytes (Mono)
Sensors
Paper End Sensor , Paper near end sensor, Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Dual Interface
Standard USB V2.0 FS & Ethernet
Optional (replaces Ethernet):
RS232
Dual Serial
Powered USB
Wifi (802.11 b/g/n)
Bluetooth (Class 1, 100m, MFi certified)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux/Mac CUPS Driver, Virtual COM USB/Ethernet Driver
Software Utilities
Firmware/NV Image download
Utility Software Package
SDK available: iOS, Android, Windows, Windows Run Time
Power Supply
External Power Adapter
Input: AC 100~240V output: DC 24V
Power Consumption
EnergyStar certified
External Dimensions (WxDxH)
147 x 200 x 148 mm
Weight
Approx. 1.56 Kg
Operating Environment
0-40°C
10-80% RH None condensing
Storage Environment
-20-60°C
10-90% RH None condensing
Reliability
Head: 250 Km*
Auto Cutter: 3 Million cuts*
* Specified Paper:
TF50KS-E (Paper Tickness 65µm) Nippon Paper
PD 150R(Paper Tickness 75µm) New Oji Paper
PD 160R (Paper Tickness 75µm) New Oji Paper
PD350 (Paper Tickness 62µm) Kansaki Specialty Paper
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
