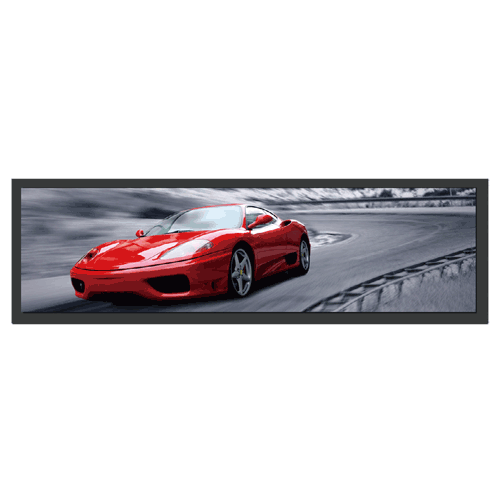

AOPEN DSD-38UW Digital Media Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

This 38” bar display can be creatively implemented in various situations, due to its design it is possible to integrate this display seamlessly into fixtures and columns.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 38" Ultrawide LED LCD Monitor
  • Metal Cabinet
  • Extra Wide Viewing angle
  • Narrow Bezel
  • Fanless
  • Thermal Alarm & Protection
  • High Brightness
  • Industrial grade
  • HDMI & VGA input
NameSizeDownload
No Downloads

Products available to purchase

SKUVendorName
AODE35-2032X AOPENDE35-HD Digital Engine 2 GB /w Xpe
AODSD38UW AOPENDSD38-UW 38" LED UltraWide Monitor No Touch
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-3060-UF ATDEC3060 Wall mount Ultra Slim

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
38" Ultrawide E-LED Panel
Aspect Ratio: 32:9
Display Orientation
Portrait or Landscape
Resolution
1920 x 538
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
800 nits
Response time
8 ms
View Angle
N/A
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
Audio out x 1
DC in x 1
Input Signal
DVI x 1
VGA x 1
Audio
Connector for 8W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 90W
at Standby Max. 1.5W
External Dimensions (WxDxH)
981mm x 45mm x 304mm
Bezel Width L\T 24.4 mm, R\B 20.4 mm
Weight
6.3 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
